Car USB SD iPhone iPod Bluetooth and aux in interface with Bluetooth handsfree

FOB Reference Price:Get Latest Price
US $40-80 / Units | 10 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Screen Size:
Other
Placement:
Dashboard
Combination:
Bluetooth-Enabled, CD Player, MP3 / MP4 Players, Radio Tuner, USB SD Interface
Certification:
CE ROHS FCC
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
YATOUR
Model Number:
YT-M07
Warranty:
12 Months, 1 year
Function:
Connect USB SD iPhone iPod to original car audio
Optional function:
Bluetooth hands free
Connection:
Connect to Original CD Changer Port
Feature:
Car audio panel control & Car steering wheel control
Sound quality:
same as original CD Changer
SupplyAbility
SupplyAbility:
5000 Unit/Units per Week
Packaging & Delivery
Packaging Details
Yatour brand package in English
Neutral package in English
OEM package
Port
GUANGZHOU
Lead Time :
Shipped in 3 days after payment

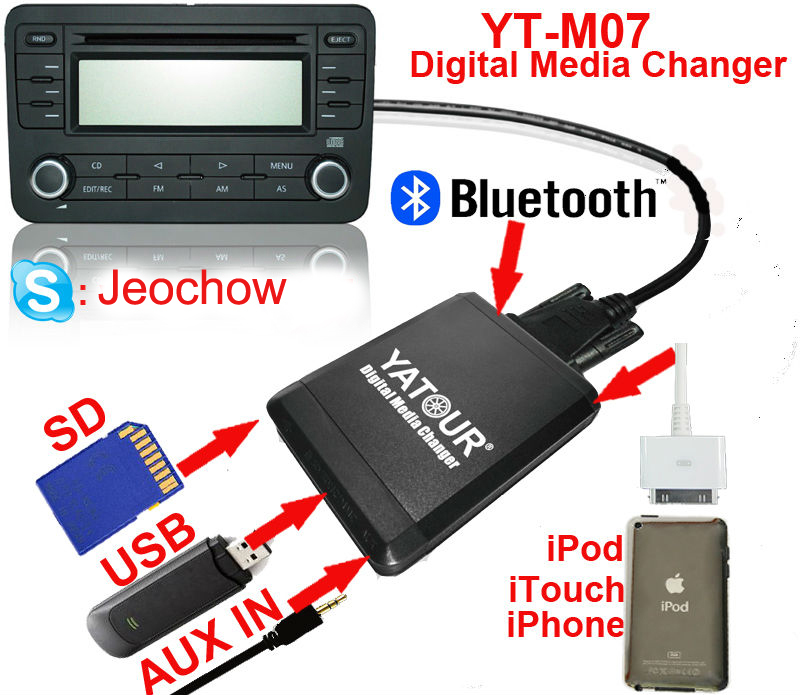

YATOUR Digital Media Changer with built-in high quality MP3/WMA decoder, equipped with iPhone iPod USB/SD/AUX IN slot and Bluetooth module, and controls MP3/WMA playing through Head Unit and supports Steering Wheel operation.

Combining iPhone iPod port, USB Port, SD/SDHC Port, AUX IN Port and Bluetooth module port, YATOUR provides car owners access to more audio sources. Meanwhile, YATOUR can be applied to aftermarket car radio of main brands(such as Sony, Alpine).

  Acts as a converter of "Entertainment Source", YATOUR can make travel more entertaining and increase peace of mind.





>> Features

· Connected with wire harness, not FM signal controlled, Hi-Fi guaranteed

· Controlled by vehicle Head Unit, support Steering Wheel operation

· With imported Hi-Fi Decoding Chip, perfectly support MP3/WMA/WAV tracks

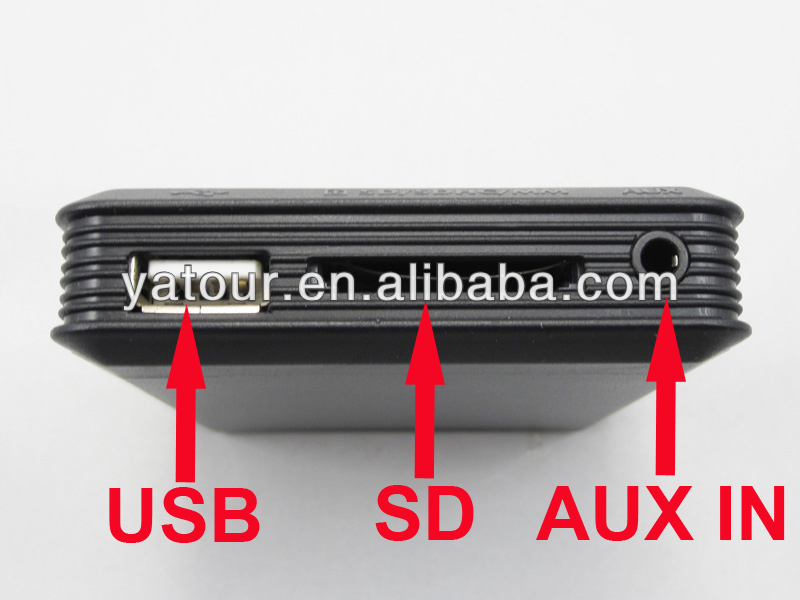

· Supports SD/SDHC/MMC Card/U Disk/Card Reader/Hard Disk/iPhone/iPod

· Supports external audio source (MP3, MP4, PSP, Mobile phone) via AUX IN port

. Supports an BT connection for option Bluetooth function

· Playlist function same as multi CDs

· Supports Last Position Memory(LPM)

· Shock proof and electromagnetic interference proof

· Easy to install, without hurting the original car circuit

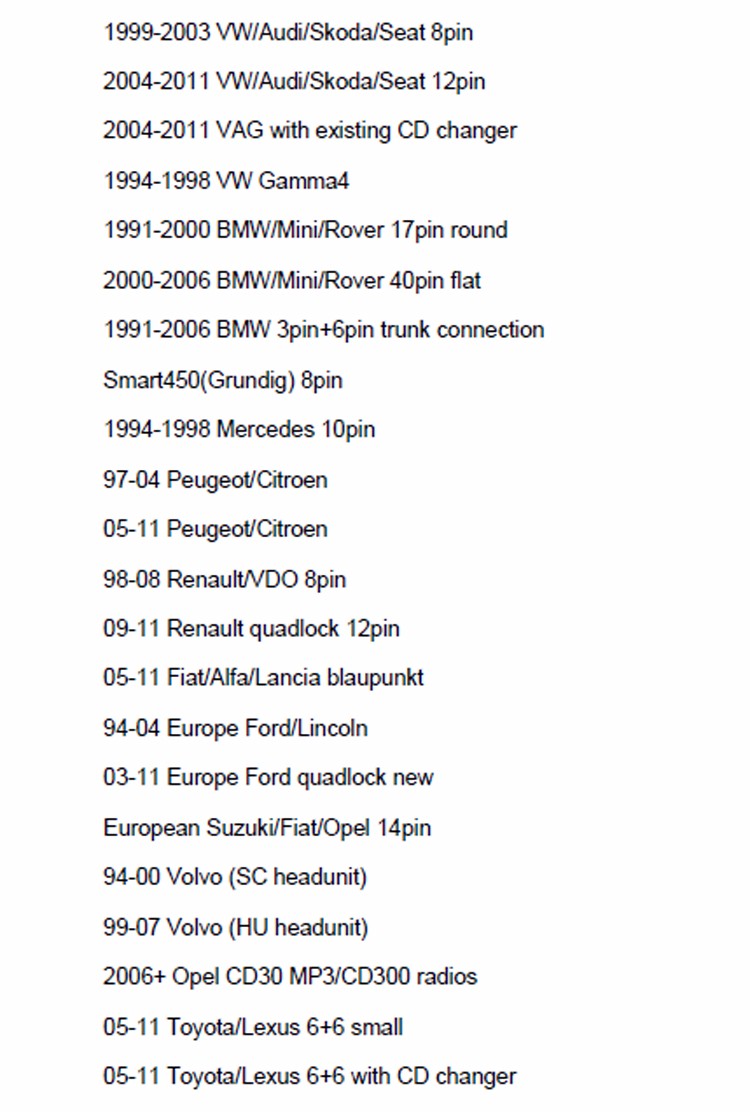

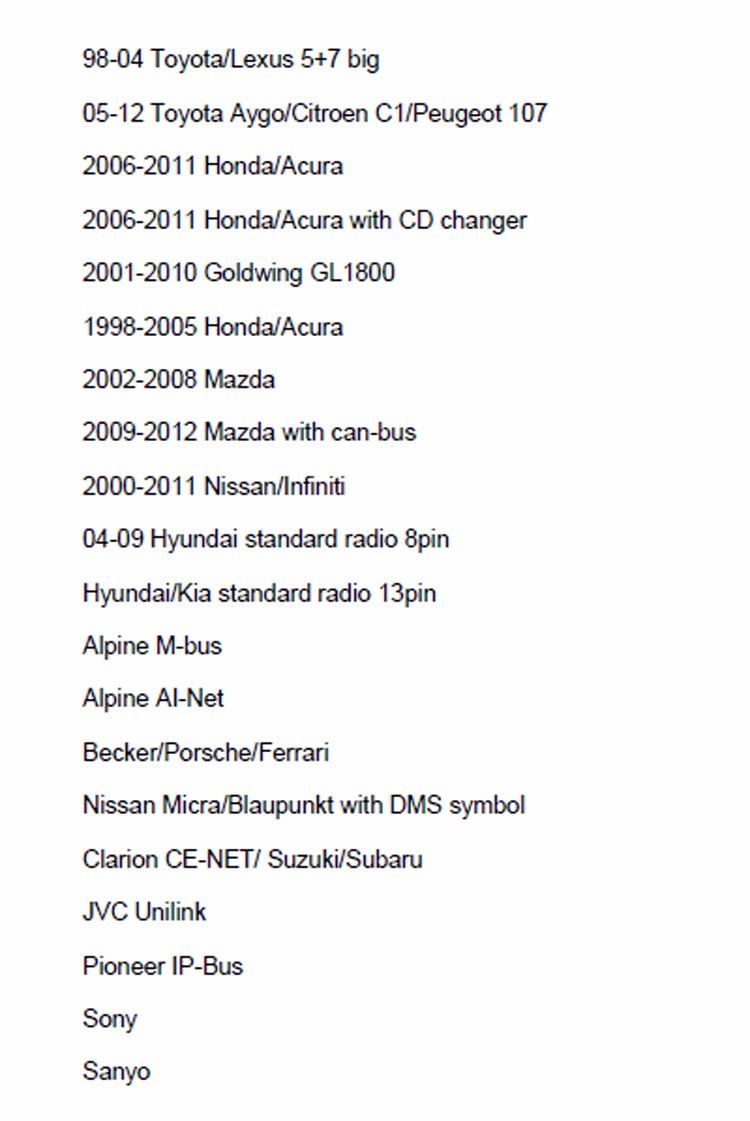

>> Application



>> Installation Diagram :

This device is only suitable for vehicles whose Head Unit (either Original or Refitting) is with CD Changer Port.



Note :  Mp3 / CDC Swith cable is optional , available for some vehicles only.

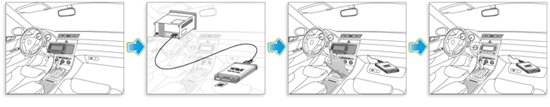

>> Installation Steps



1. Before installation, switch off the electric power, take out the Head Unit, and find CD Changer port at the back of the Head Unit

2.  Properly connect the wire harness between YATOUR and the Head Unit

3. Switch on the electric power, insert MP3/WMA storage device and run the Head Unit, check whether YATOUR works normally.

4. After the successful test, fix the Head Unit in the original place, and put the wire harness in proper place. Then installation is completed.



How to save music into folders :

1. Name folders as CD01 ,CD02 ,CD03...etc

2. The naming of songs is unrestricted .

3. Don't save music files in the folders of the sub directory , otherwise , can't recognized .

4. Support mp3 / wma .

Below is showing example .





Accessories:

1 pc Module , 1pc wireless harness , 1pc 3.5mm aux cable , 1 pc user manual

Package:

• Standard packing box : 210 x 150 x 60 mm

• Half-size packing box : 150 x 105 x 60 mm

• Module weight : 90g

• Gross weight : 220g~400g .
